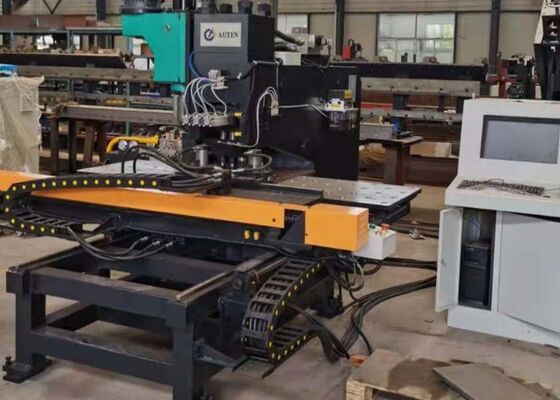

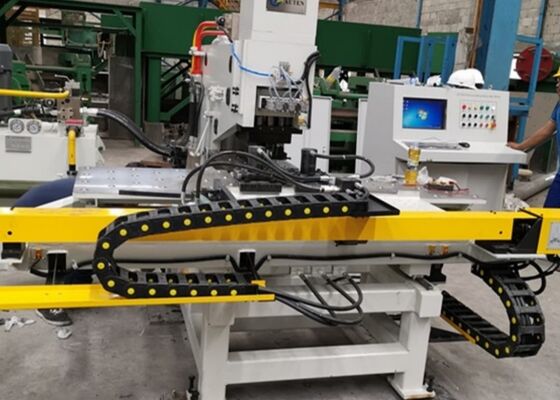

1500×800mm Workpiece CNC Plate Punching Machine For Steel Plates And Various Metal Components
Applicable industry:
Designed specifically for the steel tower manufacturing sector, this CNC plate punching and drilling machine ensures superior precision in punching, marking, and drilling operations for steel plate workpieces. Furthermore, it offers remarkable operational flexibility, capable of performing punching, drilling, and marking tasks on a wide range of metal components across various industrial applications.
Specifications:
| Model |
BNC100 |
BNCZ100 |
BNHD120 |
| Max size of work piece (mm) |
1500×800 |
| Max. punching diameter (mm) |
Φ26 |
| Max. drilling diameter (mm) |
/ |
Φ50 |
| Taper of drilling spindle |
/ |
/ |
BT50 |
| Plate thickness (mm) |
Punching |
5～25 (Q235) |
| Drilling |
/ |
40 |
| Punching force (kN) |
1000/ 1200 |
| Marking force (kN) |
800/ 1000 |
| Min. distance between hole and plate edge (mm) |
Punching |
25 |
| Drilling |
/ |
Depends on hole diameter |
| Character size(mm) |
14×10×19 |
| Qty. of character |
12 |
| Die-stations |
3 |
4 |
| Feeding speed of drilling (mm/min) |
/ |
25~280 |
0~5000 |
| Stroke of drilling spindle(mm) |
/ |
180 |
350 |
| Rotation speed of drilling spindle(r/min) |
/ |
120~560 |
30~3000 |
| Programming mode |
Command programming, Auto CAD drawing or layout software
|
| Overall dimensions L×W×H (m) |
3.2×3×1.9 |
3.2×3×2.6 |
3.3×3.2×3 |
Product feature:
1. Constructed using C-type plate welding, the frame of the CNC channel steel punching and marking machine offers exceptional structural stability and provides ample space for operations. Equipped with three die stations (one dedicated solely to marking), the system allows for automatic die station indexing, thereby enhancing operational efficiency. The clamping mechanism ensures versatile compatibility with a wide array of workpieces, utilizing a zero-reference baffle as the positioning standard. Workpieces are securely placed on a ball-bearing worktable to ensure smooth handling. The X and Y axis movements are driven by servo motors and conveyed through high-precision ball screws, with punching position alignment controlled by a Programmable Logic Controller (PLC), ensuring complete automation of the machining process. Once the operator inputs the workpiece program, it can be saved, recalled, and reused for batch production runs.
2. The CNC steel drilling machine incorporates advanced Computer Numerical Control (CNC) technology and servo motor-driven feed systems, guaranteeing enhanced operational efficiency and consistent precision across workpieces.
3. Key functional components are designed with a modular approach, facilitating easy maintenance and streamlined repair processes.
4. The CNC metal plate punching and marking machine enables the seamless integration of punching, marking, and drilling operations on a single metal plate, achieving multi-process functionality within a single operational cycle.
5. The drilling module combines essential functional features such as rapid downward feed, precise machining progression, and quick retraction—all of which substantially improve operational efficiency in practical work environments.
6. Equipped with an intelligent self-diagnostic fault system, the machine allows for the prompt identification of operational issues, enabling proactive maintenance actions and ensuring continuous production reliability.
7. The programming process is meticulously designed with a focus on user-friendly operation: operators can directly enter hole diameters, hole position coordinates, and workpiece batch quantities into the control system. Additionally, the system supports the execution of programs generated by professional lofting software or allows for direct conversion of CAD/CAM files, ensuring smooth and efficient program implementation.
Machine details:
This specialized metalworking system is custom-designed to carry out punching, marking, and drilling operations on steel plates for the steel tower manufacturing industry. It ensures exceptional machining accuracy, meeting stringent tolerance specifications and surface finish requirements. In addition to its application in the steel tower sector, this highly adaptable equipment provides reliable punching, drilling, and marking capabilities for metal plates across a broad spectrum of industrial sectors. It consistently maintains operational efficiency and processing precision for all types of metal workpieces, thereby optimizing workflow and improving product quality across diverse industrial applications.
