1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3～∟100×100×10mm Angle Size
Applicable Industry:
This CNC angle punching cutting and marking machine line is a custom-developed, industry-specific device exclusively engineered to carry out high-precision angle steel punching, marking, and shearing operations. The CNC angle metal punch machine is specifically tailored to meet the core processing demands of the angle steel tower industry—a sector where component accuracy directly impacts structural stability.
Specifications:
| Model |
JNC1010 |
| Functions |
Punching, marking, cutting |
| Angle size(mm) |
∟40×40×3～∟100×100×10 |
| Max. length of blank (m) |
12 |
| Max. length of finished (m) |
10 |
| Max. Punching (dia. х thi.) (mm) |
Φ26×10(Material:Q345 510N/mm2) |
| Punches per side |
2 |
| Punching force (kN) |
630 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1000 |
| Group of Marking letters |
4 |
| Number of letters per group |
12 |
| Dimension of letter (mm) |
14×10×19 |
| Cutting mode |
Single blade cutting |
| CNC axes |
3 |
| Feeding speed of angle (m/min) |
80 |
| Cooling method of hydraulic system |
Water cooling |
| Processing precision |
Accordance with GB2694 |
| Program function |
Input by keyboard and USB interface |
| Dimension(mm) |
28000×6500×2200 |
Product Composition:

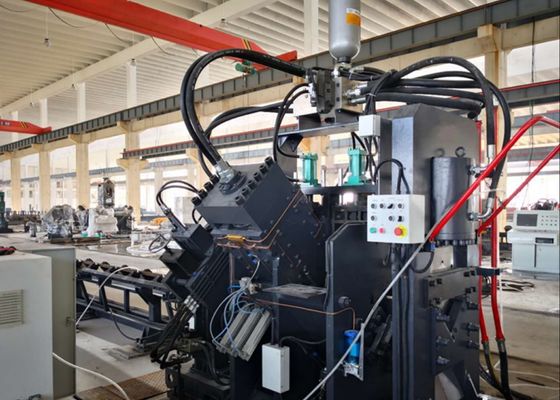

This CNC punching shearing and marking equipment is primarily made up of core functional modules, which include a transverse conveyor, a rotating loading system, a feed-in conveyor, a CNC feed-in carriage, a punching module, a marking module, a cutting module, and an unloading conveyor. Angles punching machine line also incorporates essential supporting systems—such as hydraulic, electrical, and pneumatic systems—along with other auxiliary components.
Product Features:
1. Marking Unit Design
The marking unit adopts a closed-frame structure with excellent rigidity. Four groups of character boxes are fixed on the unit and can be selected via program; the marking reference mark can be set arbitrarily.
2. Punch & Die Setup
The CNC punch mark and chu machine line each side is equipped with three sets of punches and dies, which can accommodate three types of punches with different diameters. Under PLC control, the three sets of dies can achieve synchronous movement to adjust the punching reference mark.
3. Human-Machine Interface & Programming
The computer is configured with a Chinese/English interface, featuring user-friendly operation and the ability to display workpiece drawings. Programming is simplified, and the equipment can directly utilize program data generated by lofting software. When editing a program, users only need to input workpiece dimensions, hole diameters, reference marks, and workpiece quantities.
4. Control & Feeding System
The cnc punching equipment for tower adopts CNC technology and servo motor-driven feeding, delivering high operational efficiency and stable workpiece precision. All key hydraulic, pneumatic, and electrical components are of imported origin, ensuring reliable system performance.
These specimens, which cover common specifications and processing scenarios in the angle steel tower industry, enable users to directly inspect the equipment’s processing quality, precision, and craftsmanship standards.
In the construction of ultra-high voltage (UHV) transmission lines—where towers are required to resist extreme meteorological conditions and heavy loads—this equipment fulfills a critical function in processing the angle steel components that constitute the towers’ main framework. It reliably executes drilling and stamping operations on the angle steel applied to tower bodies, cross-arms, and other key structural components. This guarantees precise dimensional accuracy and robust connections, thereby ensuring the overall stability of the towers.
