Product Introduction:

The CNC angle drilling and marking machine line is precisely designed for the drilling and marking of large, high-strength angle steel used in transmission line towers. This system ensures the accurate drilling of all holes in the angle steel, delivering superior hole quality and positional precision. Furthermore, it enhances production efficiency while providing a high level of automation.

Main Parameters:

Product Features:

1. The production line is equipped with an automated loading system, which includes a horizontal feeding channel, a rotating loading rack, and an automatic unloading system, all driven by an advanced feeding mechanism. This integration ensures a smooth and efficient workflow for all drilling and steel stamping operations on the angle steel. The entire process is fully automated, removing the need for manual intervention and significantly reducing labor demands for operators.

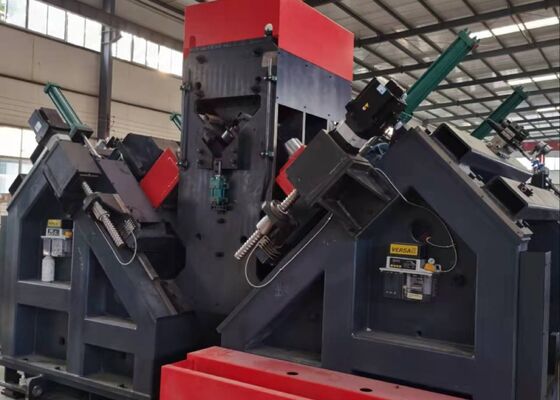

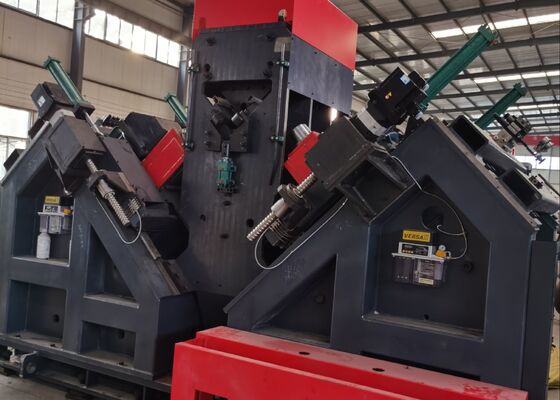

2. The drilling spindle is fitted with a Taiwan BT40 precision spindle, incorporating internal coolant to enhance both drilling efficiency and precision. The drilling unit consists of six CNC drilling heads, with three positioned on each side of the angle steel. The heads on both sides are designed to drill holes of identical diameter simultaneously, ensuring consistent spacing from the upper edges of the angle steel flanges.

3. The software is equipped with a bilingual Chinese/English interface, facilitating intuitive navigation and providing a clear presentation of workpiece drawings.

4. The programming process is streamlined and efficient; users are required to input only the workpiece dimensions, hole diameter, spacing, and quantity, allowing the program to be generated automatically. Furthermore, CAD/CAM lofting software can be employed for seamless file conversion. The system is fully compatible with NC1 files produced by TEKLA software.

5. Critical hydraulic, pneumatic, and electrical components are sourced from reputable, high-performance brands to ensure outstanding reliability and an extended operational lifespan.

6. The system is equipped with an integrated self-diagnostic feature, enabling efficient fault detection and troubleshooting.

7. An optional shearing unit is offered, incorporating a dual-blade cutting mechanism engineered to improve performance.

These specimens encompass a range of standard specifications and hole configurations of angle steel commonly employed in the construction of transmission line towers. They serve as a visual reference for potential users or inspectors to evaluate the operational performance of the equipment, providing clear and measurable benchmarks to assess whether the equipment complies with the required manufacturing standards for transmission line tower production.

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to extreme weather conditions and substantial loads, this equipment is vital in processing the angle steel components that constitute the primary load-bearing framework of the towers. It efficiently executes drilling and stamping operations on the angle steel used in the tower bodies, cross-arms, and other critical structural elements, ensuring precise dimensional accuracy and reliable connection performance. Consequently, it plays an essential role in maintaining the long-term structural integrity and stability of the transmission towers throughout their service life.
